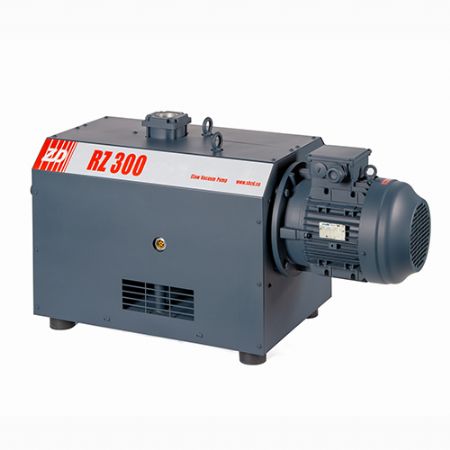

品种类型:RZ-系列无油爪式真空泵
型号:RZ 系列无油爪式真空泵 |
|
|
|
详细说明 |
|
|
| RZ80 | RZ150 | RZ251 | RZ300 | | Unit | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 抽气速率 Pumping Speed | m3/h | 75 | 90 | 140 | 165 | 250 | 300 | 300 | 360 | 极限压力 Ultimate Pressure | hPa(mbar) | 150 | 电机功率 Motor Power | kW | 2.2 | 3 | 3.5 | 4.5 | 5.5 | 6.5 | 6.5 | 7.5 | 电机转速 Motor Rated Rotation | rpm | 1500 | 1800 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 吸气口径 Inlet Port | Inch | G1-1/4 | G2 | 排气口径 Outlet Port | Inch | 1" | 1-1/4" | 噪音 Noise Level | db(A) | 68 | 70 | 71 | 72 | 75 | 77 | 77 | 79 | 重量 Gross Weight | Kg | 170 | 172 | 172 | 175 | 248 | 252 | 255 | 260 | 外形尺寸 Dimensions | mm | 1035*410*460 | 1110*480*578 |
|
|
